LED Screen for Outdoor Advertising — Three-Layer Rotating Landmark
Three outdoor LED layers rotate around independent axes to create synchronized, counter-rotating and offset movements. The display, mechanical structure and site interface are engineered as one landmark system.
Engineering response within 8 business hours.
Program three layers of 360° rotating LED motion.
The defining feature is the relationship between all three moving layers. Switch between synchronized, offset and counter-rotating presets, or adjust each layer independently.
Three-Layer Motion Control
Choose a preset or adjust each layer angle to explore content reveals and changing architectural silhouettes.
Configure an outdoor rotating LED landmark around the site.
Enter the installation environment, target size, display faces and motion style to generate a brief for structural, mechanical, electrical and content engineering.
01 / LANDMARK PROJECT INPUTS
02 / INITIAL SYSTEM SUMMARY
Three-layer Independently Driven Landmark System
Begin with a joint review of foundation, wind load, display weight, inertia and power conditions before selecting the mast, bearings, gearbox and servo specifications.

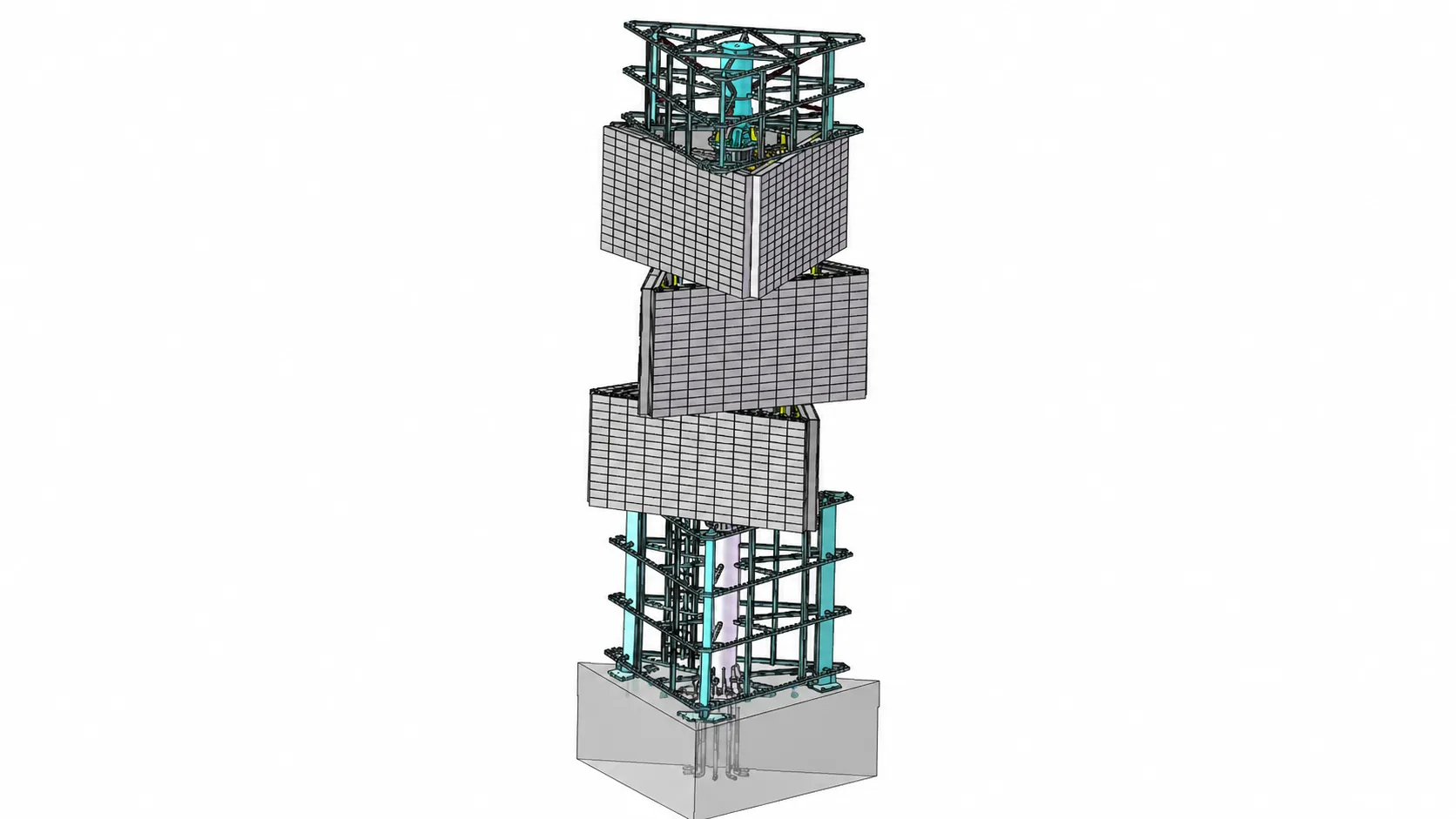

What is inside a three-layer mechanical rotating LED screen?
A clear system breakdown helps architects, media operators, LED companies and integrators understand the structural, mechanical, electrical and display interfaces each party must confirm.
3 × Q235B Galvanized Frames
One triangular frame per layer; the reference quote includes corrosion and water protection plus factory assembly testing.
3 × Main Shafts + 9 Flanges
The reference quote uses a through-shaft machined from 320 round tube with welded 16 mm steel flanges; final dimensions require load verification.
6 × Slewing Bearings
The reference quote uses six externally geared 357 slewing rings to provide load support and drive interfaces for three layers.
3 × Servo + Gearbox Sets
Each layer uses one 1500 W integrated low-noise servo and one planetary gearbox for independent drive.
3 × Slip Ring & Motion Control Sets
Each layer includes a continuous-rotation slip ring, motion controller, cabling and position sensor.
Outdoor LED Display System
The reference quote assigns this to the client; outdoor P4, display control, installation and content systems are configured separately.
Site Civil Works and Installation Excluded
The C20 concrete base, 800 seamless steel-pipe column, top fixing bracket, base cladding, crane, safety measures and site labor are client-supplied or quoted separately.
Technical resources
Move from product research to an engineering decision.
Product specification
Reference dimensions, performance, packing and system-interface information.
View / download specificationAsk the engineering AI
Get a quick answer about product selection, inputs or supply scope. Complex questions are handed to WhatsApp.
Joeqing on YouTube
Watch product motion, factory demonstrations and completed kinetic installations.
Open the video channelReference outdoor rotating LED screen configuration.
This reference case matches the current quotation without presenting it as a fixed standard product. New projects may reuse the system logic, but dimensions, displays, drives and safety design must be reconfirmed.

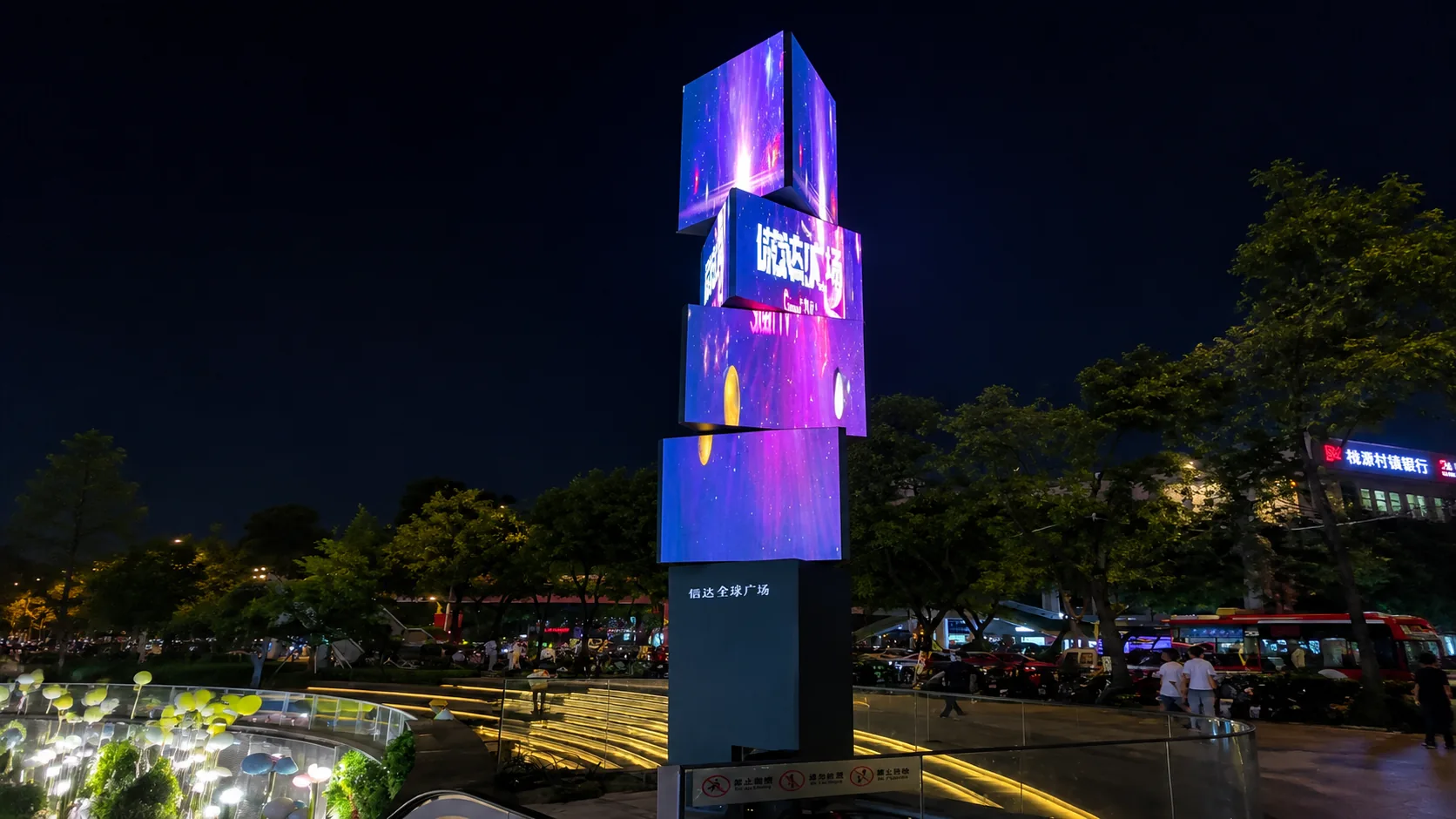

Three-Layer Rotating Tower for a Retail District
